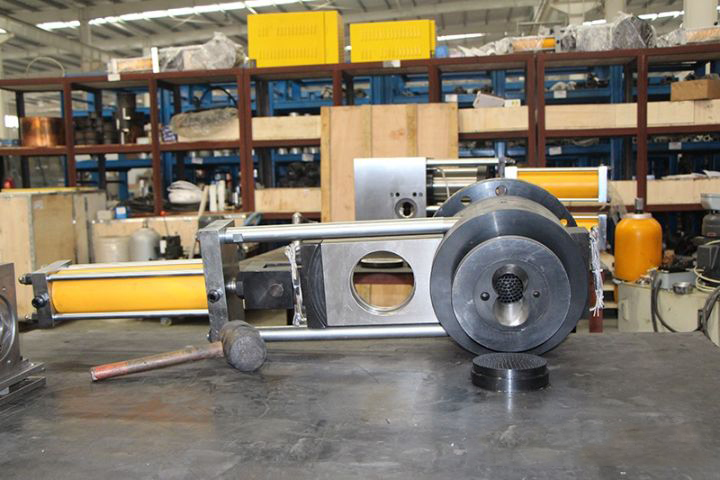

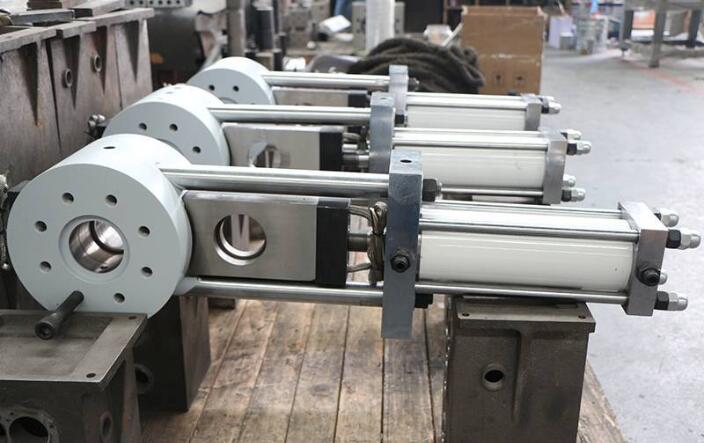

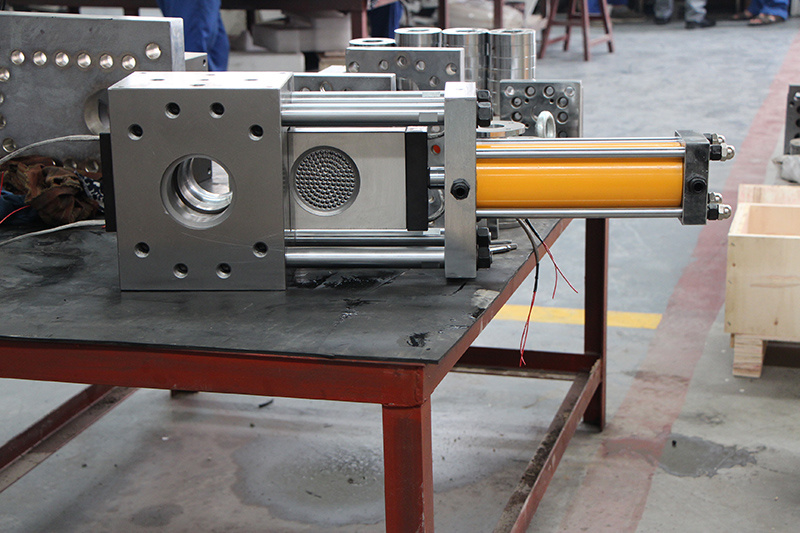

Hydraulic screen changer for silicone rubber
Hydraulic screen changer for silicone rubber, provided by Zhengzhou BATTE as a single plate dual station polymer extrusion melt filter hydraulic screen changer; It is suitable for melt temperatures below 350 ℃, designed for high operating melt pressure of 35MPa, and can operate normally under 35MPa melt pressure. It is suitable for production yields of 0.1-8.0 T/h.
Two detachable filtration stations are designed on the slide plate of the silicone rubber screen changer. During operation, one filtration station filters the melt inside the main body, and the other station is used as a backup outside the main body (the slide plate is equipped with stainless steel heating rods for heating and insulation to ensure similar production temperature). When impurities accumulate on the filter screen to a certain extent during work, it is necessary to change the screen. You can press the operating handle button on the hydraulic station to start the energy storage hydraulic station for screen changing. Advantages of hydraulic screen changer for silicone rubber: While meeting customer needs, it has a low price and a high cost-effectiveness ratio.
The main material of the hydraulic screen changer for silicone rubber is 38CrMoAl, and the forging is quenched, tempered and nitrided; The screen changer slide plate+inner ring: 38CrMoAl; Supporting pressure measuring components: front pressure transmitter, reserved melt pressure detection port, M14 × 1.5; The silicone rubber hydraulic screen changer is designed for pressure monitoring in front of the screen, which means a pressure transformer is installed in front of the screen. Zhengzhou Bate can provide a complete set of screen changer equipment, including hydraulic non-stop screen changer, hydraulic station, bracket, control system, etc., which can also be configured according to user needs.
The screen changer provided by Zhengzhou BATTE polymer Screen Changer Manufacturer is widely used in the extrusion production process of many plastic products, such as the petrochemical industry, biodegradable polymer blend modified granulation, non-woven fabrics, packaging materials, high-performance films, pipes, rubber, wire drawing, various adhesives, etc. It is suitable for engineering plastics EPS, XPS, rubber, EVA, GPPS, ABS, PS, PMMA, PET, PA, PPA, PC, PP, PE, PEEK, PPA, PBAT, etc Online filtration of PLA and other melts.
